Welcome to project ZORA. A creative interactive experience that is designed to bring self awareness and meditation for people who enjoy living in the moment.

We decided to name our group VZA, which combines the initials of our last names. Further, the symmetrical aesthetic of each letter and visually flowing combination of the letters were the reasons why we wanted to create a unique word mark.

Additionally, our whole concept stemmed from a historic religion, named Zoroastrianism, where people pray/meditate with natural fire in order to find relaxation and self care. Zoroastrianism was the original religious belief in Azerbaijan, where Fidan was born. Therefore, we all wanted to integrate this spiritual phenomenon into our project to give it a personal touch.

INITIAL
CONCEPT


For this project, all 3 of us wanted to collaborate on creating a safe physical experience for people who are affected from the side effects of our current challenging times. Meaning, we are trying to build an interactive station where people could escape their reality and play a game to accomplish the end goal, which would be self care and positive influences on mental health as well.



By building a layered stand in the shape of a detailed flame, we wanted to add 7 levels to our challenging meditation game. Each level would be represented by the each layer of our flame station, separated by 7 different colors of LED lights. This station would require each user to accomplish 7 certain yoga/meditation positions that would be responsive with the lights. This would mean that every time the user try to imitate a certain silhouette of a stance and would trigger LED layers one by one with the goal of lighting all of the levels at the end.



By also challenging themselves into beneficial

physical poses, players would earn the satisfaction of accomplishing a meditation cycle with visually satisfying process of lighting up all of the levels. This whole experience also could be performed in a collaborative environment with multiple stations, increasing the challenge in between peers.


To enable the interaction between a player and this station, we thought that using a QR code would be an easy access to the instructions and game itself with each player’s phone devices. This way they could connect to the station through their phones and start the game.

This specific solution for our interaction design would give us a less costly outcome and accessible by almost anyone who uses a smartphone.

Below are some design sketches all of the team members collaborated on, we all brought different perpectives and style to play around with our project.


This would also help to hold the device and enable the camera to have a precise position to allow the player interact with the physical detection. This way users could enjoy the experience without having to hold anything and see the goals of the game wile also enjoying the sequential light motion.

ZORA
DESIGN No1

We decided to sketch some ideas for our ZORA design. This design contains 7 boards stacked up on top of one another with LED Lighting reflecting through the sides.


ZORA
DESIGN No2

Image from iOS-3.jpg
Image from iOS-2 copy.jpg
Image from iOS-5.jpg
Image from iOS-4.jpg

In combination of the stacked prototype and organic shape of an open flame, LEDs would illuminate each single layer to represent the users progress during the session.



In addition, a potential LED panel would be installed at the forefront of the display. The display would house ranges of positions, games and encouraging messages to create a phone free option.


ZORA
DESIGN No3




For another option, we also wanted to prototype a modern and an organic shape, almost mimicking human body as well.


Once all the levels are complete, then the audience may meditate with the final light combination, a gentled flickering flame.


Below are additional process documentation with initial designs of ZORA.

Image from iOS-6.jpg

We also wanted to add a very minimalistic Modern design to our sketches to add diversity to our design choices.


Below are some research and diagrams of each piece of layers of ZORA

Easy to fabricate on 4 4’x8’ sheets of plywood

light sections.jpg

FINAL
DESIGNS


We also created a budget sheet

for this project linked here.

Along the purchase process, we were given a set amount of budget from the University of Colorado Boulder and Sara Preston from the accounting team of ATLAS helped us along the way by communicating through an online excel sheet.

To fabricate the whole project we also built out a timeline and a calendar of events to accomplish by the end of our semester of Spring 2021.

Our main goal is to create an interactive station where people can escape their reality with an experience designed to mimic the flickering of fire, while discovering the hidden secrets of the sculpture.

The essence of the piece correlates with peoples

ability to drop into deep meditation and unlock

hidden aspects of their mind and bodies.



This station would require each existential being to come close, explore the piece, find their threshold and begin meditation. 7 different distances will have

different illumination sequences, from dim to

bright and of course different combinations of the spectrum of the flame.

Once the sculpture receives the bow, The meditation can begin. In order for the full effects of the LEDs to occur, the experiencer must bow and meditate for a short time in a single spot.


5V Power Source

LED Strip

LIDAR

Sensor

PC Connector

By using an Arduino Uno board, ZORA will be capable of displaying different lighting sequences and patterns that correspond to the user’s movement.



The first interaction will be processed by LIDAR sensor to measure the users distance as they approach ZORA. As the user continues to move through the motions, the lighting patterns will change to further enhance this immersive experience.





RESEARCH &
INSPIRATION


These images and online sources/communities listed below, inspired us during the beginning of our project.

PhotonicBliss

Choose Muse

Yoga For Balance

Lightning In A Bottle Festival

Yoga

Ketamine Infusion Therapy

Balance Focused Yoga

Yoga Poses With Illustrations

OUR
LOCATION

We decided to use our ATLAS building to host our station. We scavenged few spots inside the building to see where we could place our work :)

Screen Shot 2021-03-07 at 10.32.39 PM.pn


FABRICATION


Below are some saved documentation images, sketches, demos and many more.

The fabrication of the sculpture is straight forward and easy to disassemble and reassemble. Flat 4’x8’ sheets of plywood are CNC’d into each individual shape. The shapes are then stacked together with .75” spacers separating the sheets, and giving depth to the structure.



A “powercell” will be located at the rear of the structure, easily accessible for maintenance. In the powercell will be all of our hardware and connections for the necessary LIDAR to Arduino to LED strip.

Image from iOS-11.jpg
Image from iOS-10.jpg
Image from iOS-9.jpg
Image from iOS-8.jpg

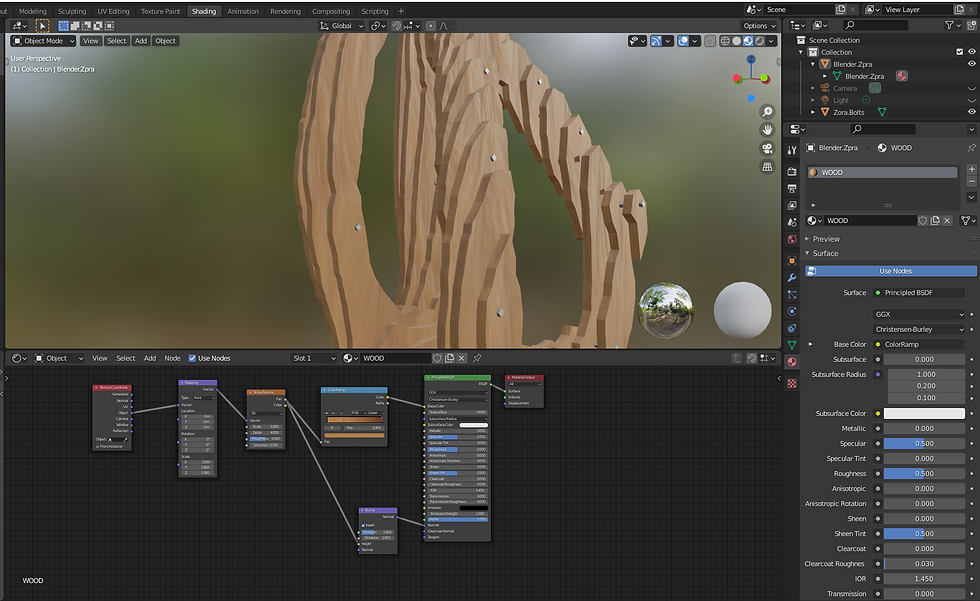

Below, it was our first time plugging the 3d rendered model to our online website.

We used free open source vectary.com to host our file.


Another render

with glitch.com

first attempt with

mobile camera view



Our fist tests on our nervous system of Zora, aka the LEDs.


Imitation of red flames

Imitation of blue flames



OUR
TEAM


CONTACT ME

(650)888-82-75


Austin is an Immersive Experience Designer who focuses on parametric programming and digital fabrication. Austin will lead the fabrication and design of Zora. His goal is to capture the essence of fire and community, to bring motion and playfulness back to meditation.


Nolan is a Graphic Designer with a background in 2D/3D animation. Nolan will be working behind the scenes as the lead programmer using LEDs and LIDAR sensors to bring a still sculpture to life. His goal is to create a cohesive experience between the user and Zora.


CONTACT ME

(318)773-39-33


CONTACT ME

(305)570-88-20


Fidan is a UX Designer with a Graphic Design background and is interested in the UX/HCI Design. She will take lead on Visual Design processes and assist team with fabricating the project. Her goal is to create an appealing and meaningful visual identity and create an easy environment for the users.


BRANDING
& IDENTITY


We decided to name our team VZA, which combines the initials of our last names. Further, the symmetrical aesthetic of the each letter was the reason why we wanted to create a word mark.



Our whole concept and the name of our interactive instillation stemmed from a historic religion named Zoroastrianism, were people pray/mediate with natural fire in order to find relaxation and self care. Zoroastrianism, was also the original religious belief in Azerbaijan, where Fidan was born. Therefore, we all wanted to integrate this spiritual phenomenon into our project to give it a personal touch.

Screen Shot 2021-04-18 at 12.26.55 AM.pn

Thank you so so much for taking your time and reaching the end! :)

We also have a feedback form for people who took their time and experienced Zora, whether physically or virtually. It would make us happy if you also shared your thoughts through this feedback form!
